`High power cooling professional`
Devoted to become the thermal management leader in the new energy field!

Advisory hotline: 4008-557-528

hot key words： Dongguan skived fin heat sink vendor Shenzhen skived fin heat sink vendor Dongguan PV inverter heat sink PV inverter heat sink vendor Jiangsu skived fin heat sink vendor Custom SVG heat pipe thermal module

Where you are：Home ? Product Center ? Product techniques ? Extruded heat sink

　擠壓成型散熱器一般為高功率散熱元件和散熱系統，文軒熱能根據現有成熟的鋁擠型型材散熱器技術，可以提供可靠的自然對流環境解決方案。通過模具實現鋁擠壓成型，可實現復雜的散熱齒片結構。這些復雜的散熱齒片更大提高了散熱表面面積，同時降低了鋁塊加工的成本和時間。
為什么要使用文軒熱能擠壓散熱器？
（1）比沖壓成型的散熱片更高效；（2）比機械加工更節約成本；（3）有多種標準形狀和尺寸可供選擇；（4）輕松的定制實現比銅更輕，優勢明顯；（5）MAX CLIP扣件系統無需安裝硬件和工具。

查找模具（輸入參數查找你想要的產品）

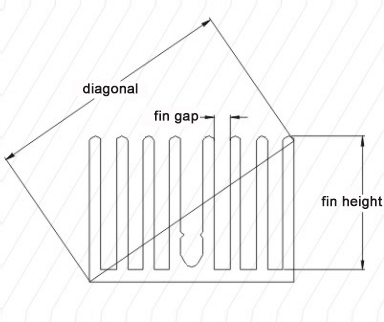

Design Parameters

The basic parameter of extrusion is as below:The basic parameter of extrusion is as below

機臺噸位對角線尺寸倍數（齒高/齒間距）機臺噸位對角線尺寸倍數（齒高/齒間距）
600T<120mm242750T<250mm21
880T<130mm243000T<320mm20
1000T<150mm223600T<350mm20
1500T<180mm224000T<400mm20
1800T<200mm216500T<540mm19
2500T<230mm218000T<700mm16

Note: Aspect ratio = fin height / fin gap

Production workshop of aluminum extruded heat sinks
Aluminum extrusion machine
Stamping machine for aluminum extruded heat sinks

Tooth features

Fin profile #1: The fin tip has the same thickness as the fin base. The aspect ratio is smaller than 10 and this structure is suitable for cooling by natural convection.

Fin profile #2: Smaller fin tip with a larger fin base and it forms a taper. High aspect ratio which is suitable for forced air cooling products. It is more lightweight under the premise of no performance reduction.

Fin profile #3: Smaller fin tip with a larger fin base and it forms a taper. Knurls are added to the fin surface. Both fin profiles #1 & #2 are suitable for this type of design to increase the surface area. The size of the knurls is inversely proportional to the aspect ratio.

Reference product

Winshare New product

: The voice of Winshare Thermal: credit and word

Winshare Thermal Ltd. (hereinafter referred to as Winshare Thermal) was founded in 2009. We specialize in the research and development, production and technical services of high power cooling solutions. We are devoted to becoming the leader in the thermal... [See details]
